ADO A20F XE
20x4.0 inch all-terrain electric bike

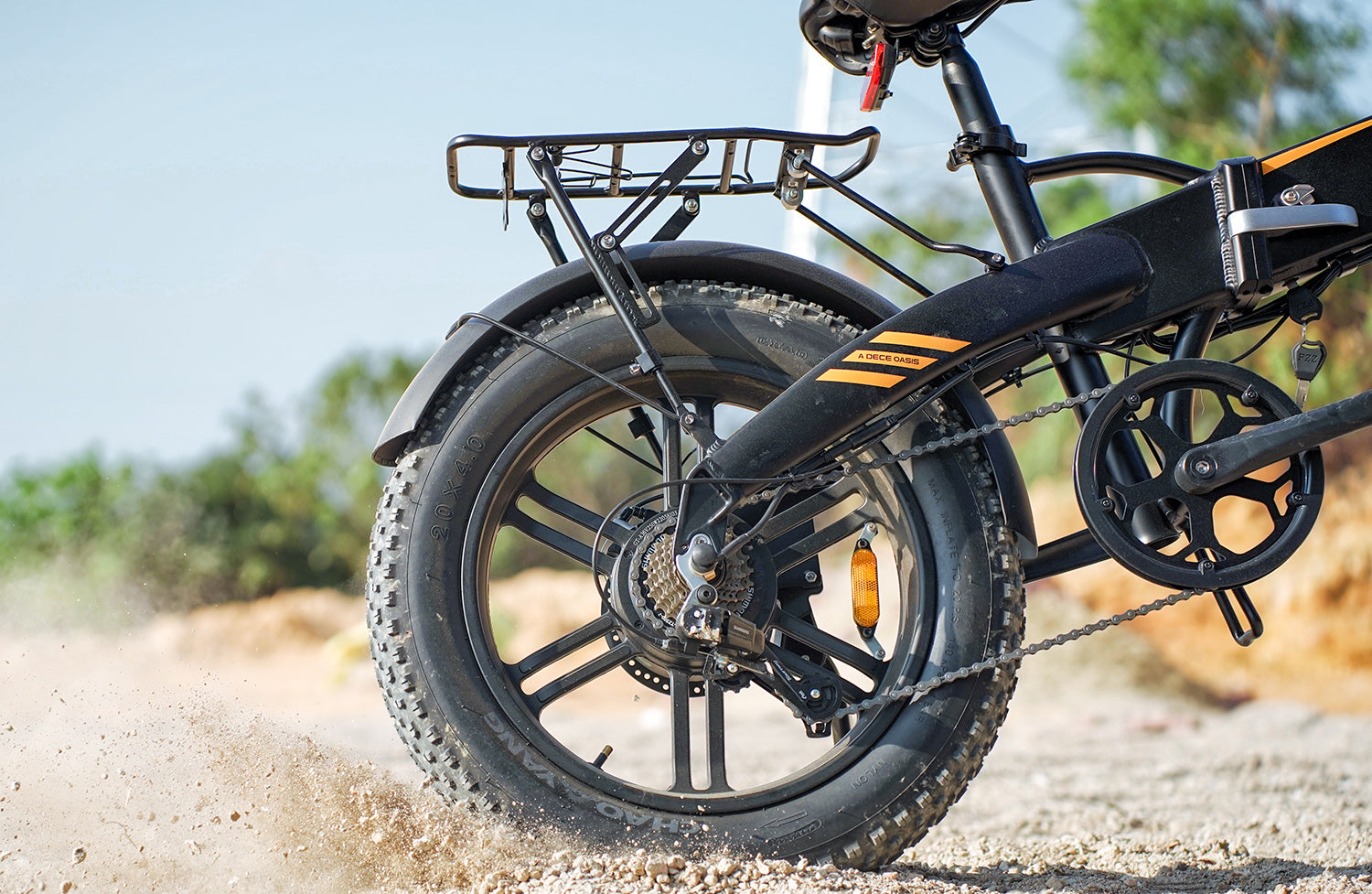

ADO A20FXE is upgraded with brake system, anti-slip fat tires 4.0 to adapt to many types of terrain,
equipped with rear fenders and storage racks to make your trip more convenient and safe.
Dual disc brake
The front and rear wheels are equipped with dual disc brakes with a quick heat dissipation design for smooth braking and safe braking in emergency situations.
DEKRA CE certification
ADO A20FXE passed DEKRA laboratory test, with reliable, guaranteed quality, passed EN15194 certification according to EU regulations. The ADO A20FXE can be legally driven on European roads.
Hub motor 43 N·m
250w motor has good heat dissipation, slow decomposition and more durable.
Provides a powerful energy to conquer all traffic conditions.
G-DRIVE pedal assist control system
Torque sensor simulation, fast signal reception and intelligent adjustment to suit different traffic conditions, effectively reducing energy loss.

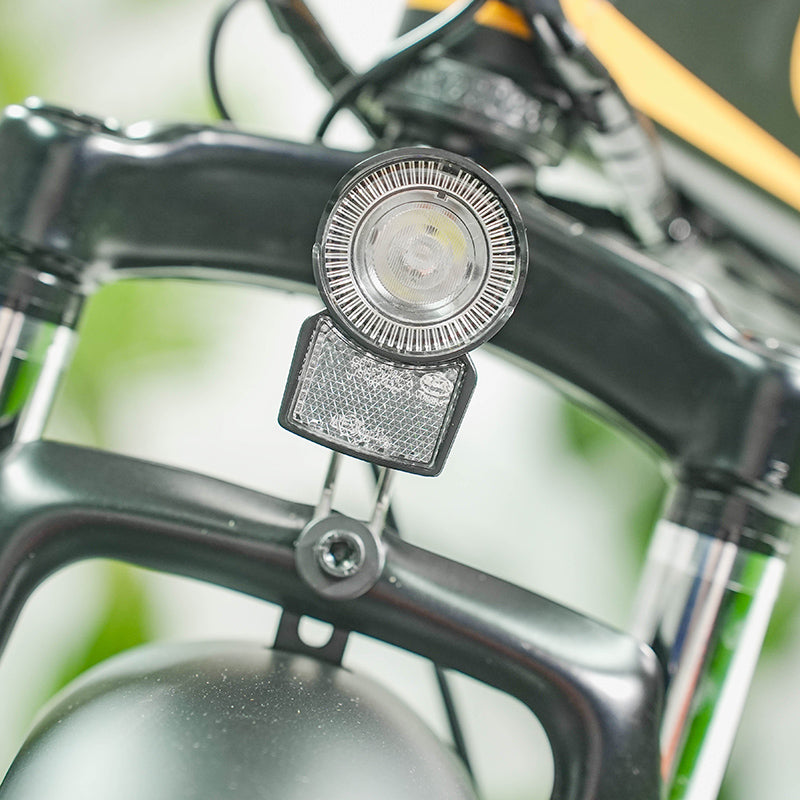

E-Mark IPX5 . headlights
High visibility LED headlights with wide illumination angle.
Shimano 7 speed
3-speed adjustable power steering system

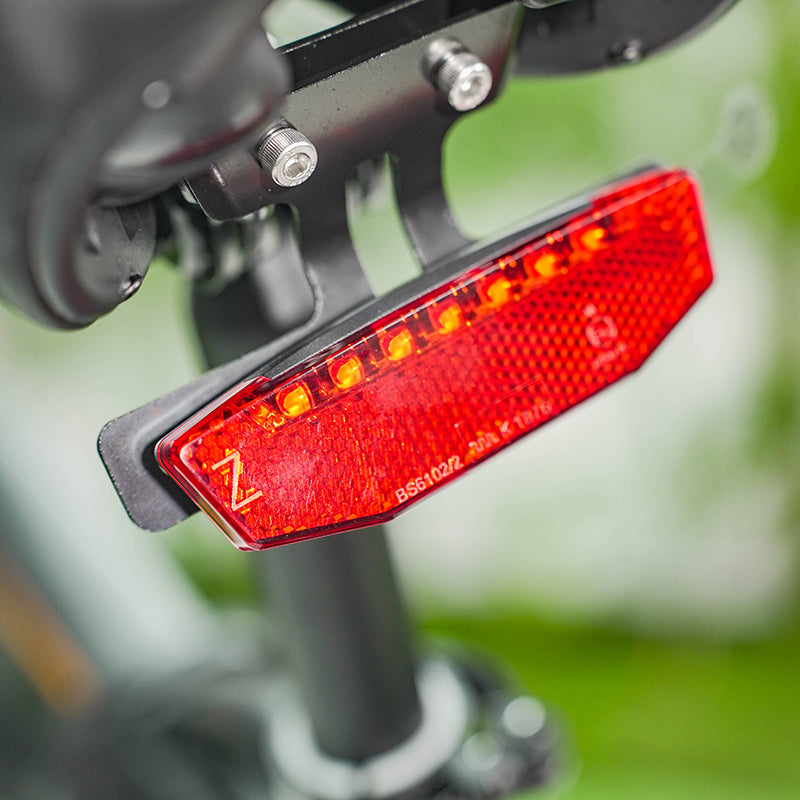

Z-Mark certified tail light
The taillights are Z-Mark certified for safety and durability.

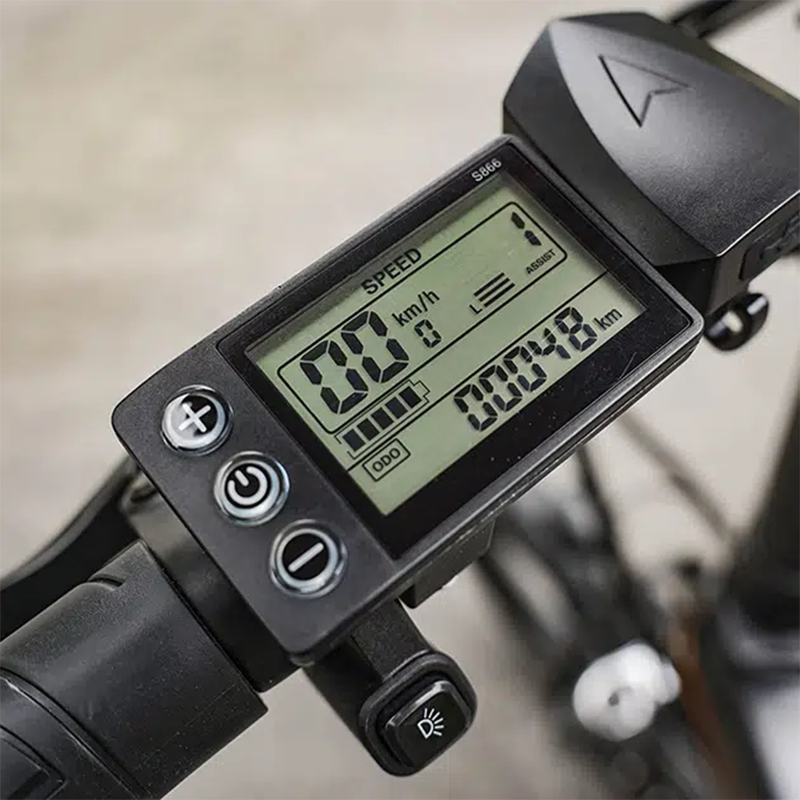

HD LCD screen
Speed, mileage and other values, more obvious in the sun; USB port to charge mobile devices at any time.

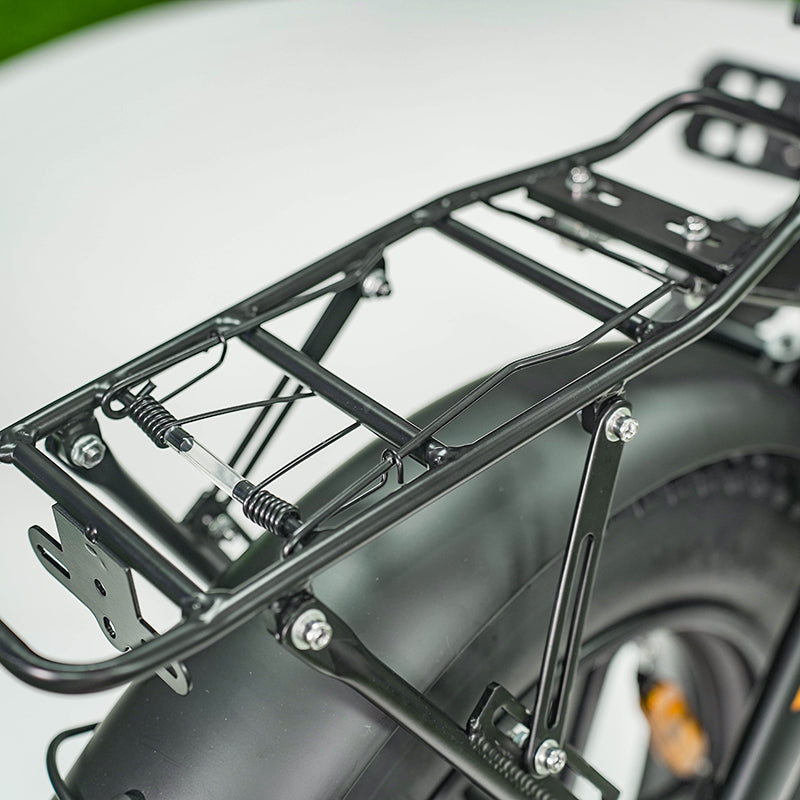

Rear fenders and brackets
The A20F XE comes with rear fenders and brackets, they can be installed or removed at any time as needed.

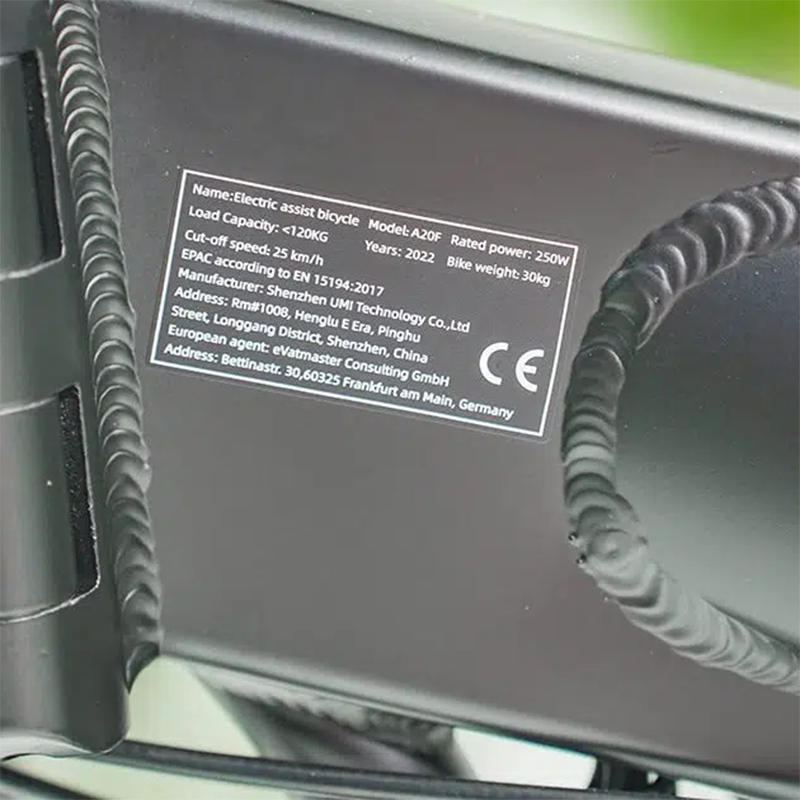

CE certification mark
The A20F XE is DEKRA certified, compliant with EU traffic regulations so you can drive with confidence on the road.
Open the box and install
| Color | Black/White/Gray |
| Net weight | 30kg |
| Recommended driving height | 165cm-190cm |
| Tire | 20*4.0 |
| Wheel diameter | 60cm |
| Two-axis distance | 113.5cm |
| Total load capacity | 120kg |
| Handlebar height | 116-129cm |
| Seat height | 86cm-118cm |
| rise | 66cm |
| overall unit | 174*53*120 cm |
| folded size | 98*45*77 cm |
| Engine power | 250W |
| The battery | 36V 10.4AH |
| Support range | 70km |
| Charger | 4-6h |
| Max speed | 25km/h |
| Torque | 43N.m |
| Brake | 3.0 hydraulic disc brake, Dual push system |
| Shock Absorbers | Shock absorber front fork |
| Transmission | Shimano 7 speed |
| waterproof level | IPX5 |
| Working temperature | -10~50°C |
A20F E-bike
first
A20F CAR Battery
first
pair of fenders
first
42V 2A charger
first
Installation Toolkit
first
Air pump
first
Mobile phone holder
first
